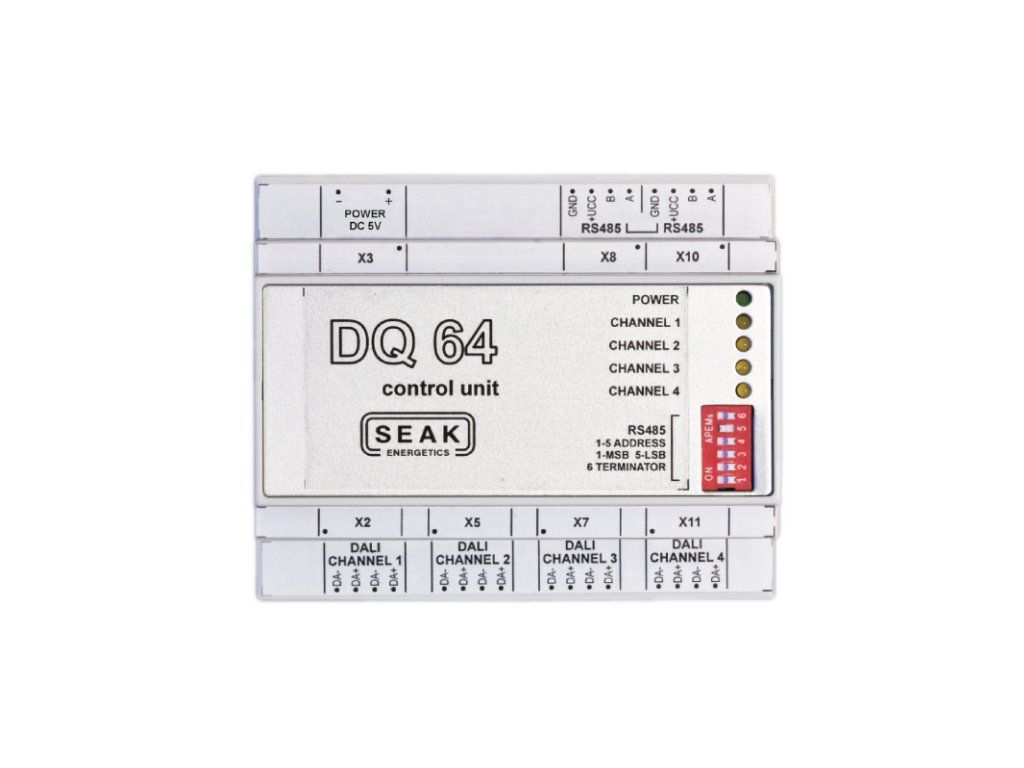

DQ-64
Code: DQ64Product detailed description
The DQ-64 converter is designed to convert control commands from the RS485 data interface to the communication protocol of a control system with an IEC62386 interface. The device enables the KDR04 control unit to communicate with luminaires in an IEC62386 data network topology. It extends the SEAK-SMART control system with the ability to control luminaires with an IEC62386 interface.
- Communication with 4 IEC62386 Interface (DALI) lines
- Every IEC62386 Interface line controls a max. of 64 luminaries
- Communication with the controller through RS485 interface
- One RS485 bus can serve up to 31 DQ64 units
- RS485 interface has surge protection
- RS485 and IEC62386 interfaces are galvanically isolated
|
Parameter |
Value |
|---|---|
| Input voltage | DC 5 V |
| Consumption | 4 W |
| Communication interface | RS485 (9600bps), IEC62386(1200bps) |
| Operating ambient temperature | -20 °C ~ +70 °C |
| IP Rating | IP20 |
| Weight | 183g |
| Dimensions (LxWxH) | 105x86x57mm (5M) |
Documents:
Datasheet DQ 64
Additional parameters
| Category: | Control units |
|---|---|
| Weight: | 0.177 kg |
