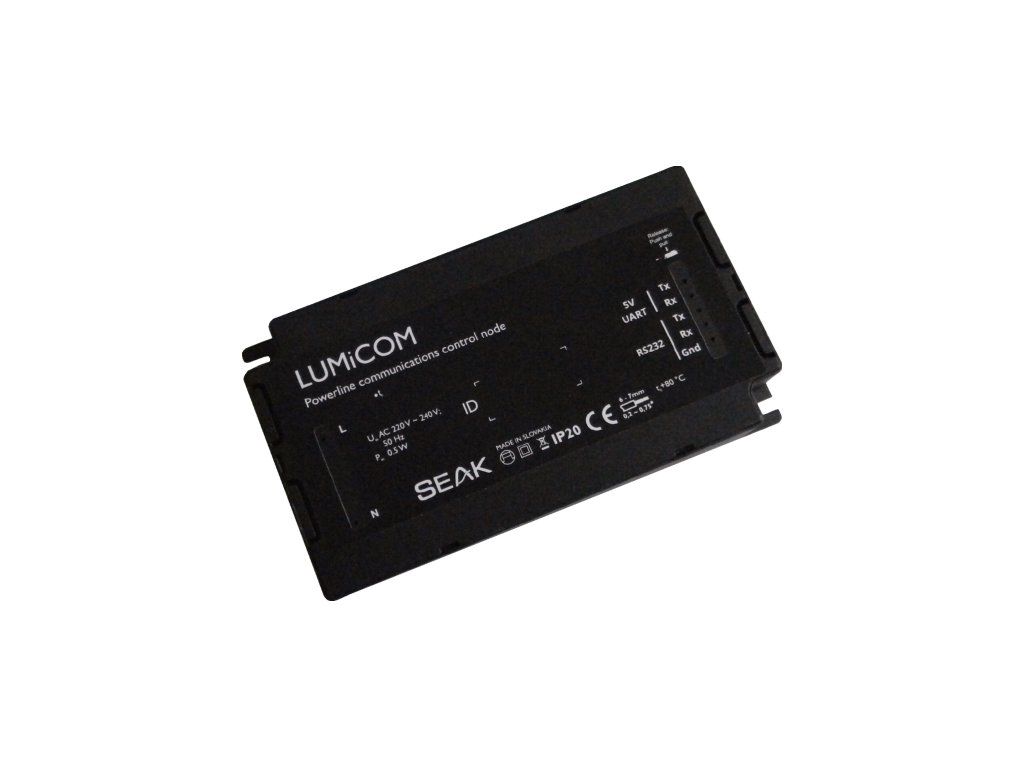

LUMiCOM 232
Code: LMC232Product detailed description
LUMiCOM 232 is a device designed to provide transparent communication with 3rd party IoT devices and sensors via existing power line. SEAK power line protocol QM-50-SSI3 is used and thus is compatible with other members of SEAK LUMi family.
- Data converter for power line
- Two-way powerline communication QM-50-SSI3
|
Parameter |
Value |
|---|---|
| Input voltage | AC 220 V ~ 240 V; 50 Hz |
| Consumption | 0,5 W |
| Communication interface | UART 5V TTL, RS232 |
| Operating temperature | -20 °C ~ +50 °C |
| IP rating | IP20/IP65 |
| Weight | 110 g |
| Dimensions (LxWxH) | 123x70x16,5mm |
Documents:
Datasheet LUMiCOM 232
Additional parameters
| Category: | Two-way communication |
|---|---|
| Weight: | 0.2 kg |
