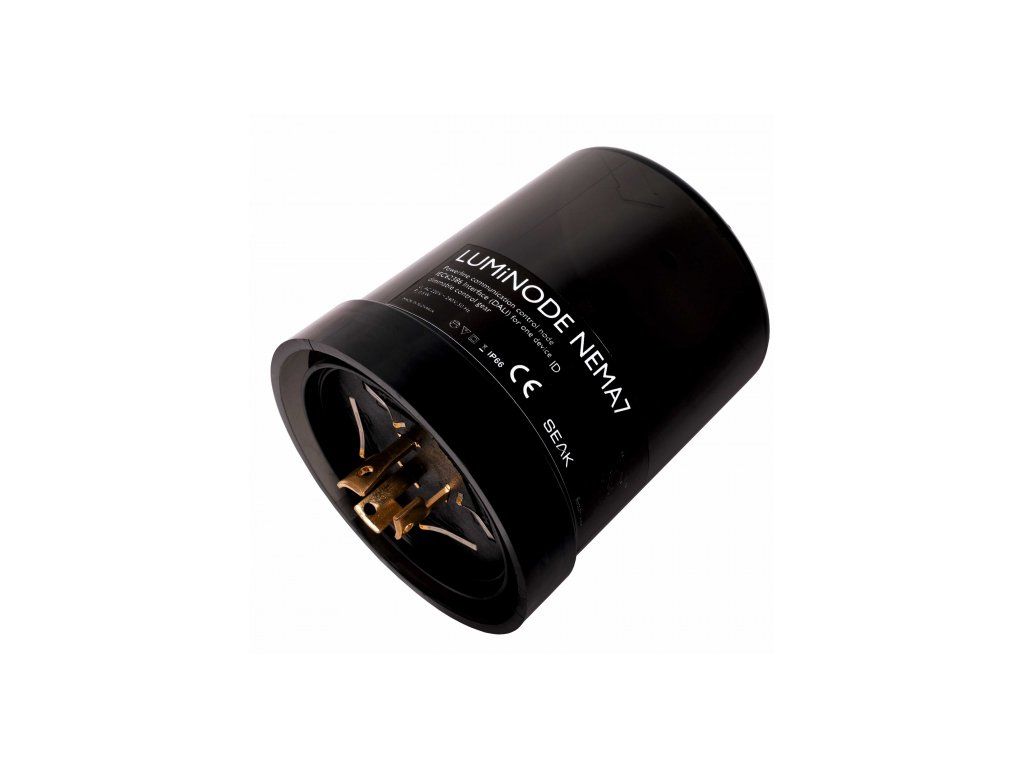

LUMiNODE NEMA7
Code: LMNNEMA7Product detailed description
The LUMiNODE NEMA7 module is designed for two-way powerline communication of luminaires with a two-way DALI bus driver and the control unit over the powerline. The module acts as converter between the QM-50-SSI3 and DALI protocols.
- Two-way Powerline Communication QM-50-SSI3
- Compatible with DALI
- Lighting control in real time
- Autonomous lighting control
|
Parameter |
Value |
|---|---|
| Input voltage | AC 220 V ~ 240 V; 50 Hz |
| Consumption | 0,5 W |
| Output | 2-way IEC62386 (DALI) |
| Operating temperature | -30 °C to +75 °C |
| IP rating | IP66 |
| Weight | 180 g |
| Dimensions (LxWxH) | 98x77 mm |
Documents:
Datasheet LUMiNODE NEMA7
Additional parameters
| Category: | Two-way communication |
|---|---|
| Weight: | 0.186 kg |
