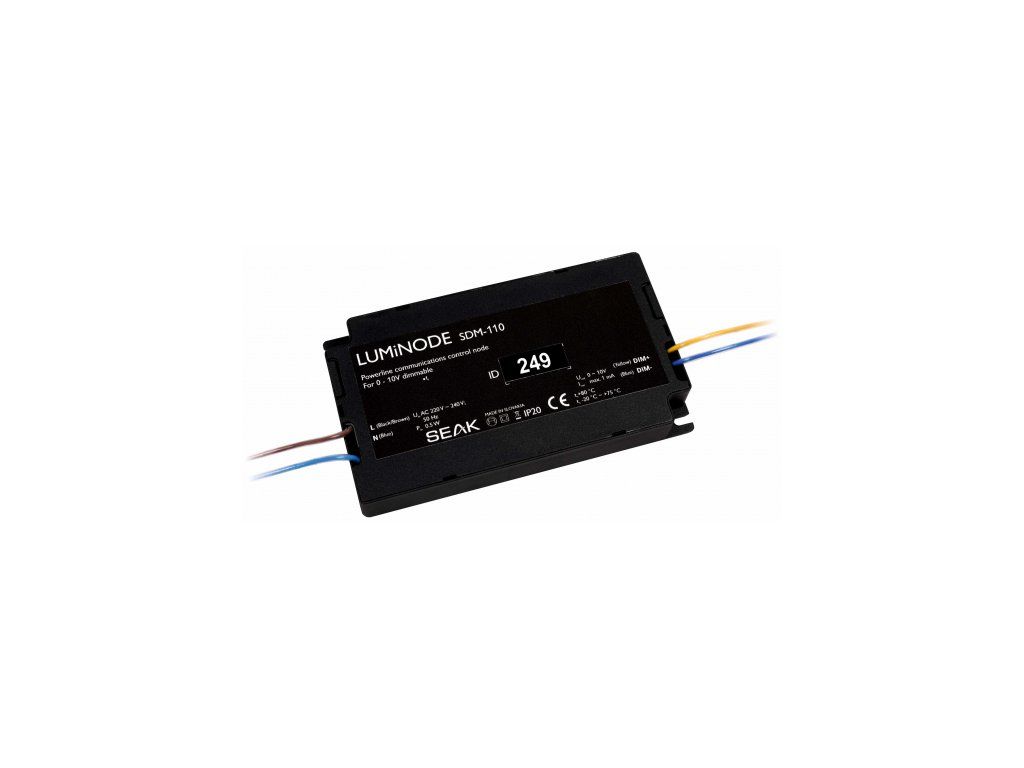

LUMiNODE SDM-110
Code: LMN110 LMN110M LMN110IP LMN110IPM Choose variantProduct detailed description
LUMiNODE SDM-110 module changes your LED luminaire into a smart, dimmable and power-line-controllable luminaire. It should be applied in smart lighting management system with motion detection for luminaires with 0-10 V analogue input. The LUMiNODE SDM-110 listens on input 230 V powerline for commands from SEAK modulator. It gets assigned an ID and supports full range of dimming commands (individual, group, and broadcast level), partnight dimming schedule programming for standalone operation and CLO function. It has no circuits for sending a reply.
- One-way powerline communication QM-50-SSI3
- Setting the control intensity levels according to DIN input switching
- Regulation from 0 to 100%
- Can control multiple* 0-10V (at least 2)
|
Parameter |
Value |
|---|---|
| Input voltage | AC 220 V ~ 240 V; 50 Hz |
| Consumption | 0,5 W |
| Communication interface | 1-way powerline QM-50-SSI3 |
| Operating temperature | -20 °C ~ +75 °C |
| IP rating | IP20/IP65 |
| Weight | 90 g |
| Dimensions (LxWxH) | 123x70x16,5mm |
Documents:
Datasheet LUMiNODE SDM-110
