    Home / Products / Sada - LUMiNODE SDM-110DA-IP-HV + DPU1

    Sada - LUMiNODE SDM-110DA-IP-HV + DPU1

    Code: LMN110DAIPHVDP
    LUMiNODE SDM 110DA HV IP
    €104,55 €85 excl. VAT
    In stock (>500 pcs)

    LUMiNODE SDM-110DA-HV-IP module is designed for two-way communication of luminaires with a two-way IEC62386 (DALI) bus driver or 0-10V output and the control unit over the powerline for high voltage environments.

    Detailed information

    Product detailed description

    • Two-way Powerline Communication QM-50-SSI3
    • Lighting control in real time
    • Autonomous lighting control
    • Ability to mass upload a new schedule in groups
    • Communication interfaces have an electrical strength of 8kV compared to a 230V power supply

    Parameter

    		 Value
    Input voltage AC 220 V ~ 240 V; 50 Hz
    Consumption 0,5 W

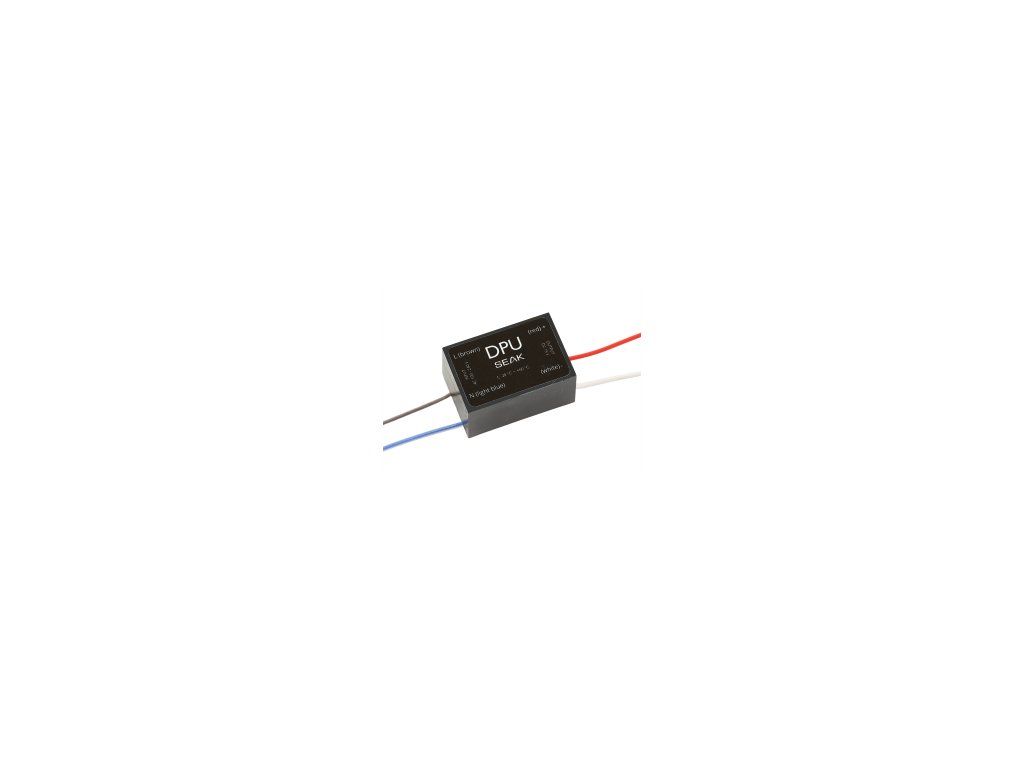

    Output 2-way IEC62386 interface (DALI), 0-10V (from an external source 15V - DPU1)
    Operating temperature -20 °C to +75 °C
    IP rating  IP20
    Weight 95 g
    Dimensions (LxWxH)  123x70x16,5 mm

    Documents:

    Datasheet  LUMiNODE SDM-110DA-HV-IP
