SIO-02
Code: SIO2Product detailed description

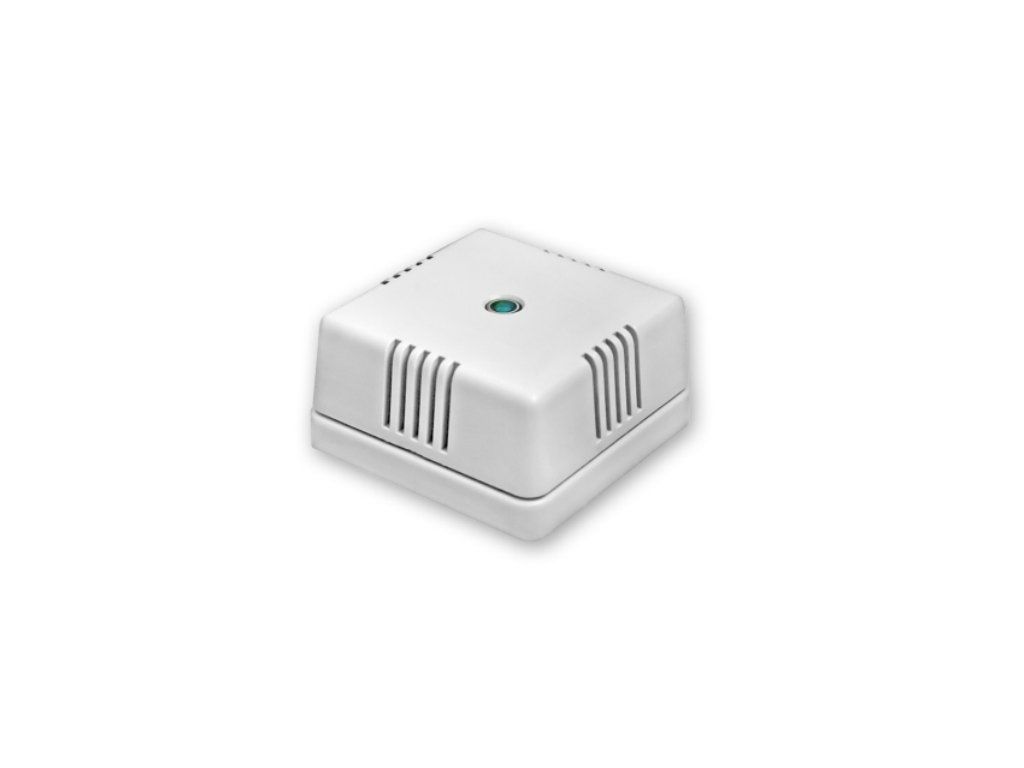

SIO-02 is light intensity sensor.
- Communication via RS485 interface
- High sensitive with a large area sensor
- High linearity output
|
Parameter |
Value |
|---|---|
| Input voltage | DC 12 ~ 30 V |
| Current consumption | < 20 mA |
| Output | 16 bit |
| Operating ambient temperature | -30 °C ~ +50 °C |
| IP rating | IP30 |
| Weight | 70 g |
| Dimensions (LxWxH) | 65x65x34 mm |
Documents:
Datasheet SIO-02
Additional parameters
| Category: | Control units |
|---|---|
| Weight: | 0.075 kg |
